Parent Layer: AER

Name: Pipeline

Display Field: Licence_No

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: This data set contains the oil and gas pipelines that have been applied for to the AER. This dataset excludes low pressure distribution lines.

Copyright Text:

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: -25353.455199999735
YMin: 5603937.5967
XMax: -14359.291100000031
YMax: 5623404.9672
Spatial Reference: PROJCS["Alberta_NAD83_3_degree_Zone_centred_at_114_deg_West",GEOGCS["GCS_North_American_1983",DATUM["D_North_American_1983",SPHEROID["Geodetic_Reference_System_of_1980",6378137.0,298.2572221008916]],PRIMEM["Greenwich",0.0],UNIT["Degree",0.0174532925199433]],PROJECTION["Transverse_Mercator"],PARAMETER["false_easting",0.0],PARAMETER["false_northing",0.0],PARAMETER["central_meridian",-114.0],PARAMETER["scale_factor",0.9999],PARAMETER["latitude_of_origin",0.0],UNIT["Meter",1.0]]

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: Substance
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: Crude Oil
  Label: Crude Oil
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 0, 0, 255]
  Width: 1
• Value: Fresh Water
  Label: Fresh Water
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 112, 255, 255]
  Width: 1
• Value: Fuel Gas
  Label: Fuel Gas
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 170, 0, 255]
  Width: 1
• Value: HV Other
  Label: HV Other
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [194, 158, 215, 255]
  Width: 1
• Value: HVP Products
  Label: HVP Products
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [168, 168, 0, 255]
  Width: 1
• Value: LVP Products
  Label: LVP Products
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [168, 56, 0, 255]
  Width: 1
• Value: Natural Gas
  Label: Natural Gas
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [85, 255, 0, 255]
  Width: 1
• Value: Oil-Well Effluent
  Label: Oil-Well Effluent
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [130, 130, 130, 255]
  Width: 1
• Value: Salt Water
  Label: Salt Water
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [190, 232, 255, 255]
  Width: 1
• Value: Sour Natural Gas
  Label: Sour Natural Gas
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 255, 0, 255]
  Width: 1
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Licence_No ( type: esriFieldTypeString, alias: Licence_No, length: 9 )
• Line_No ( type: esriFieldTypeInteger, alias: Line_No )
• From_Loc ( type: esriFieldTypeString, alias: From_Loc, length: 54 )
• To_Loc ( type: esriFieldTypeString, alias: To_Loc, length: 54 )
• Status ( type: esriFieldTypeString, alias: Status, length: 20 )
• Substance ( type: esriFieldTypeString, alias: Substance, length: 20 )
• Licensee ( type: esriFieldTypeString, alias: Licensee, length: 56 )
• H2S_10mol ( type: esriFieldTypeString, alias: H2S_10mol, length: 3 )
• Shape_Length ( type: esriFieldTypeDouble, alias: Shape_Length )

Supported Operations:   Query   Generate Renderer   Return Updates

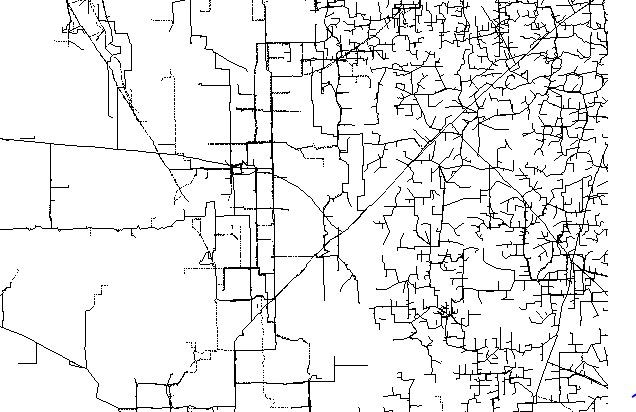

  Iteminfo   Thumbnail   Metadata
